Parametric Football Stadium

Algorithmic Design & Multi-Variant Exploration

Computational design project exploring parametric stadium generation through algorithmic rule-sets and design parameter control

Grasshopper | Rhino | Parametric Design | Computational Architecture

Learning Computationa Design

This stadium project emerged from a focused Grasshopper course
through GoPillar Academy, a learning experience fundamentally
different from my previous projects.

THE PEDAGOGICAL OBJECTIVE:
Unlike my earlier work in Revit Architectural (which focused on
technical precision and documentation) or my Master's thesis
(which emphasized creative freedom), this Grasshopper course
had a specific goal: to solidify my foundations in computational
design by mastering visual programming and algorithmic thinking.

Grasshopper is not a traditional design tool. It's a visual
programming environment where design emerges from logic, parameters,
and algorithms, not from sketching or hand drawing. Learning
Grasshopper required me to think differently about design:

TRADITIONAL DESIGN THINKING:
"I envision a form" → Draw it → Refine it → Build it

COMPUTATIONAL THINKING:
"What are the rules/constraints?" → Define parameters → Build algorithm
→ Explore variations → Choose best solution

CORE LEARNING AREAS:
The course covered foundational concepts essential to computational design:

ALGORITHMIC LOGIC: Understanding how to decompose complex problems
into step by step procedures that computers can execute

DATA STRUCTURES: Learning to organize and manipulate data flows
through visual programming, lists, trees, arrays, and how they
interact

PARAMETRIC RELATIONSHIPS: Creating associative logic where changing
one parameter cascades changes throughout the entire system

VECTOR MATHEMATICS: Using geometry and numerical operations to
generate form computationally

OPTIMIZATION: Exploring how algorithms can find solutions that
satisfy multiple constraints simultaneously

WHY THIS MATTERS FOR PROFESSIONAL PRACTICE:
Computational design isn't about creating pretty pictures, it's about
solving complex problems at scale. In architecture, this translates to:
• Rapidly exploring hundreds of design iterations
• Optimizing for structural efficiency, cost, environmental performance
• Managing massive coordination challenges in large projects
• Creating scalable, repeatable systems (especially important for
standardized housing, modular architecture, etc.)

This stadium project was my opportunity to apply these concepts in a
real design scenario.

Design Challenge: Stadium Bowl Generation

The assignment was straightforward but sophisticated: Create a
parametric system that can generate multiple stadium configurations
by adjusting parameters.

WHY A STADIUM?
A stadium is an ideal design problem for computational architecture
because it requires balancing many complex constraints:

FUNCTIONAL PARAMETERS:
• Seating capacity (number of spectators)

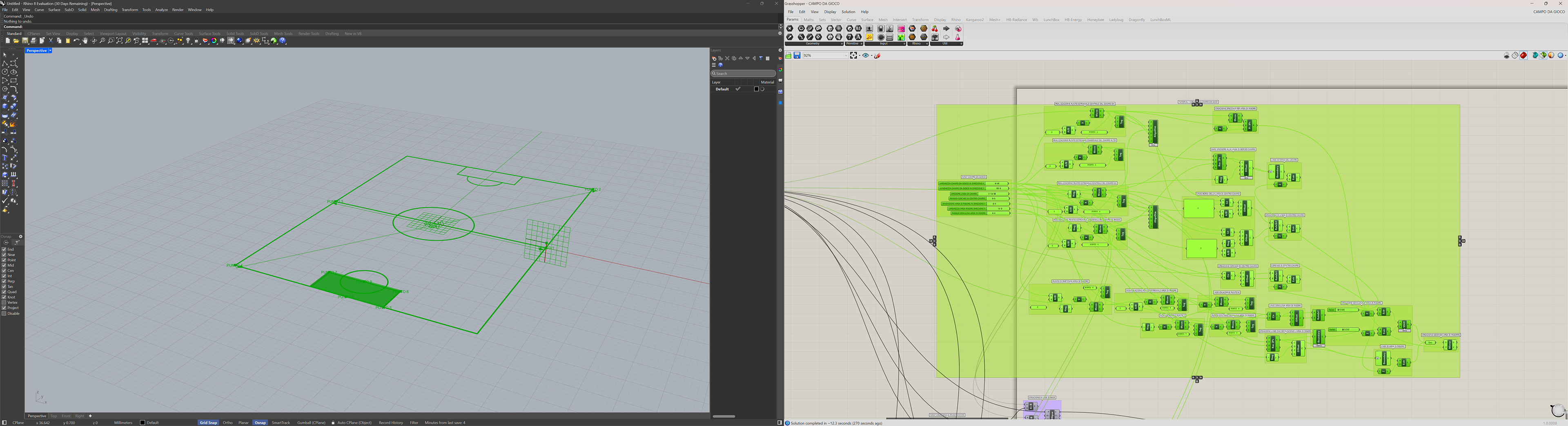

• Field/pitch dimensions (regulation requirements)
• Sightline angles (what can spectators actually see?)
• Structural column placements (minimal obstructions)
• Accessibility (ramps, clear routes)

GEOMETRIC PARAMETERS:
• Overall bowl shape (circular, elliptical, organic?)
• Tier configuration (how many levels?)
• Slope angles (spectator comfort vs. structural efficiency)
• Roof geometry (if applicable)
• Material grid spacing (structural modularity)

PERFORMANCE PARAMETERS:
• Material efficiency (minimize mass while maintaining strength)
• Acoustic performance (sound distribution)
• Daylight access (natural ventilation, viewing comfort)

THE COMPUTATIONAL APPROACH:
Rather than designing "a" stadium, I created a parameterized system
that can generate infinite stadium variations. Change one parameter,
say, seating capacity from 50,000 to 75,000, and the entire geometry
recalculates intelligently:

→ Bowl radius expands appropriately
→ Tier heights adjust to maintain sightline angles
→ Structural grid reorients to new geometry
→ Material requirements recalculate
→ Exit points reposition for optimal circulation

This is not design refinement, it's design generation. The algorithm
becomes the designer.

THE PARAMETRIC ADVANTAGE:
By encoding design intelligence into algorithms, I achieved:

RAPID ITERATION: Test 50+ stadium variants in minutes, not weeks
CONSISTENCY: All variations maintain architectural integrity
SCALABILITY: System works for small stadiums or Olympic venues
PROBLEM-SOLVING: Algorithm automatically satisfies constraints
COMMUNICATION: Parameters make design decisions explicit and
modifiable

This is exactly how contemporary architectural firms (Zaha Hadid
Architects, Foster + Partners, NBBJ) approach complex projects,
not through hand drawing, but through computational generation.

Algorithmic Logic: How Parameters Drive Geometry Generation

The critical phase of this project wasn't the final rendered model,
it was figuring out HOW to think parametrically. This required a
fundamental shift in approach.

STEP 1: IDENTIFYING KEY PARAMETERS
I began by asking: "What are the essential variables that define
a football stadium?"

Primary Parameters:
• Seating Capacity (N): Total number of spectator seats
• Bowl Diameter (D): Horizontal span of stadium
• Spectator Viewing Angle (θ): Minimum sight angle to field
• Tier Count (T): Number of seating levels
• Tier Height (H): Vertical spacing between tiers
• Structural Grid Module (M): Spacing of support columns

Secondary Parameters:
• Roof Height Ratio (R): How much of stadium is covered
• Material Surface Finish: Concrete, steel type, acoustic properties

The insight: NOT all parameters are independent. Many are
interdependent, changing one cascades through the system.

STEP 2: ESTABLISHING RELATIONSHIPS
The real computational thinking begins here. I needed to establish
mathematical relationships:

RELATIONSHIP 1: Seating Distribution
IF Capacity = 40,000 and Tiers = 2, THEN:
Lower Tier = 26,000 seats
Upper Tier = 14,000 seats
(Distribution weighted for optimal sightlines)

RELATIONSHIP 2: Sightline Geometry
IF Spectator Viewing Angle = 25°, THEN:
Tier_Height = (Tier_Radius) × tan(25°)
(This ensures every seat has minimum acceptable view angle)

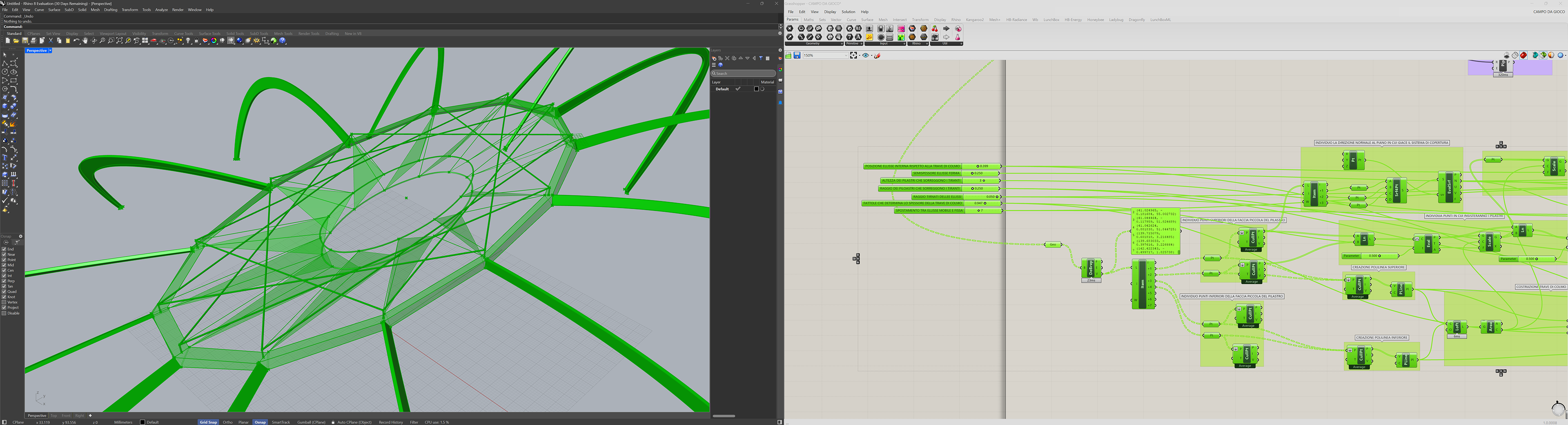

RELATIONSHIP 3: Structural Grid
IF Bowl Diameter = 150m and Module Spacing = 10m, THEN:
Column Count = (π × D) ÷ M = 47 columns around perimeter
(Grid adapts to geometry while maintaining structural efficiency)

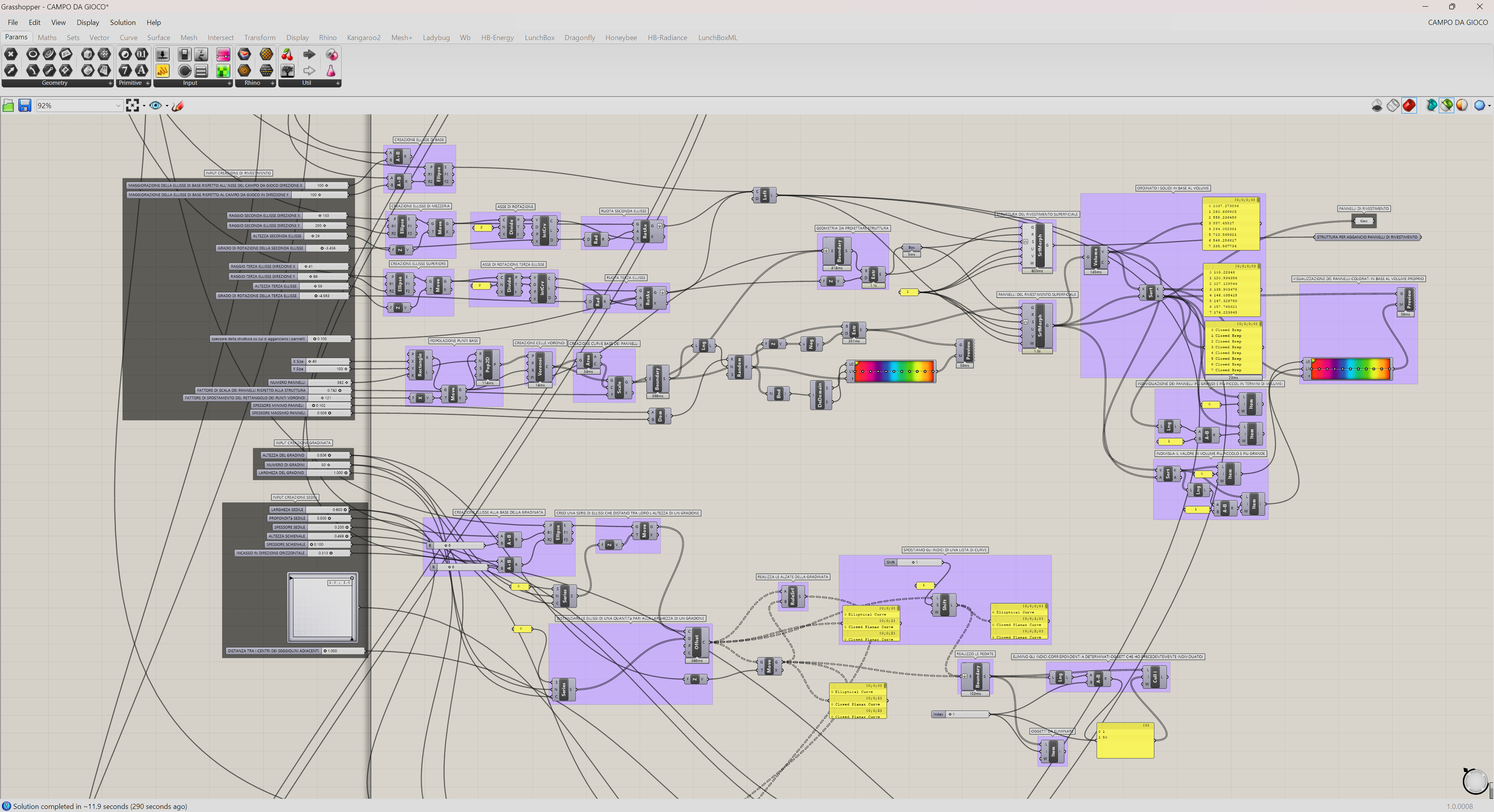

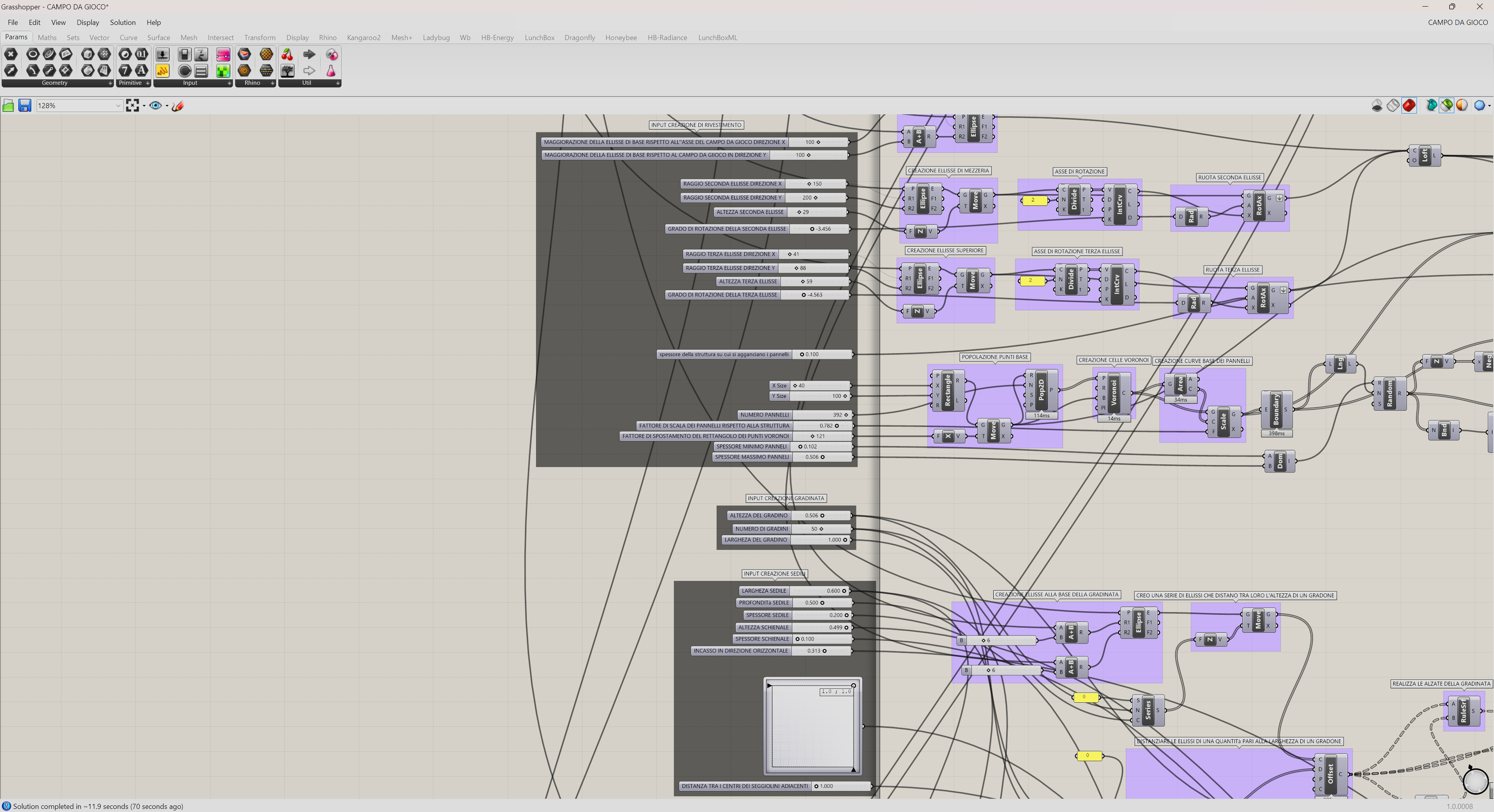

STEP 3: VISUAL PROGRAMMING IN GRASSHOPPER
In Grasshopper, these relationships become visual algorithm, nodes
representing operations, connected by wires carrying data.

Key Components Used:
• NUMBER SLIDERS: Input parameters (capacity, diameter, angles)
• MATHEMATICAL OPERATIONS: Calculate derived dimensions
• CURVES & SURFACES: Generate 3D geometry from parameters
• ARRAYS & ITERATIONS: Repeat structural elements (seats, columns)
• TREE DATA STRUCTURES: Organize complex hierarchical information
• CONDITIONAL LOGIC: "IF capacity > 50000, THEN add roof"
• OUTPUT: 3D geometry to Rhino for visualization

STEP 4: ALGORITHMIC PROBLEM-SOLVING
The algorithm doesn't just draw, it thinks:

PROBLEM: How to arrange 40,000 seats in a 150m diameter bowl
while maintaining optimal sightlines and structural feasibility?

ALGORITHM SOLUTION:

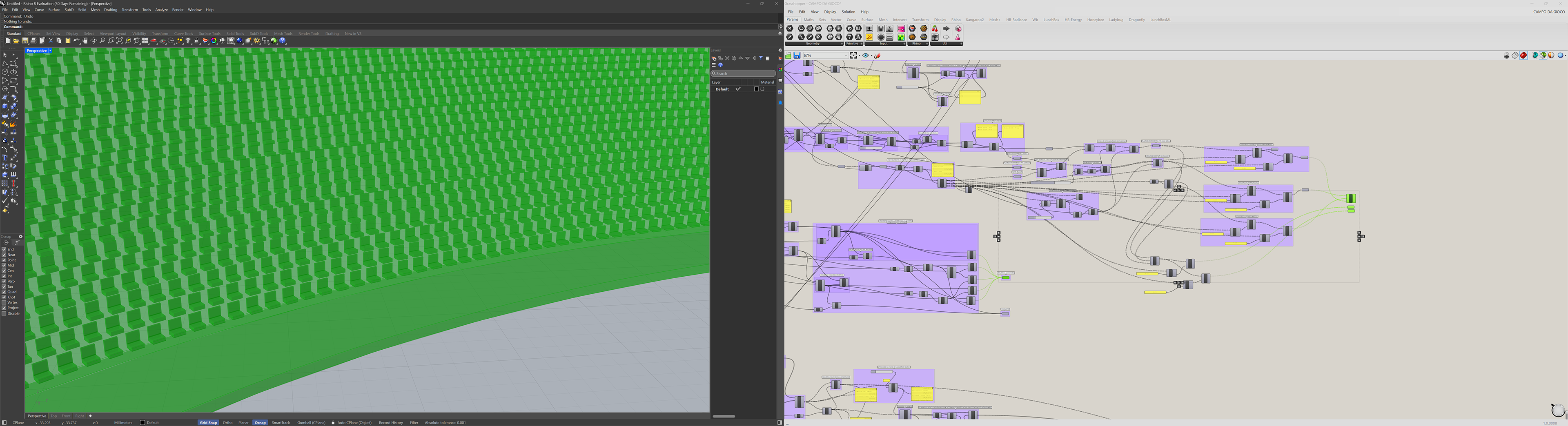

Loop through each tier level:
Calculate tier radius from bowl geometry
Determine seats per row from sightline angle
Space rows vertically maintaining viewing angles
Arrange seats in arc pattern around field
Place structural supports at grid intersections
Calculate material volumes
Return complete 3D model

This happens computationally in seconds. Manual design would take
weeks.

WHY THIS IS REVOLUTIONARY:
Traditional architecture: "I designed a stadium. Here's the drawing."
Computational architecture: "I built a system that can generate
infinite stadium variations. Here are 50 options, choose one."

The second approach is more powerful because:
Design decisions are made explicit (they're in the algorithm)
Variations are instantly available (change one number)
Constraints are automatically satisfied (algorithm enforces them)
Performance can be optimized (run algorithm to minimize cost)
Scalability is built in (works for any size project)

LEARNING OUTCOME:
This project taught me that computational design isn't about tools,
it's about learning to think algorithmically. It's about translating
design intelligence into reproducible, scalable systems.

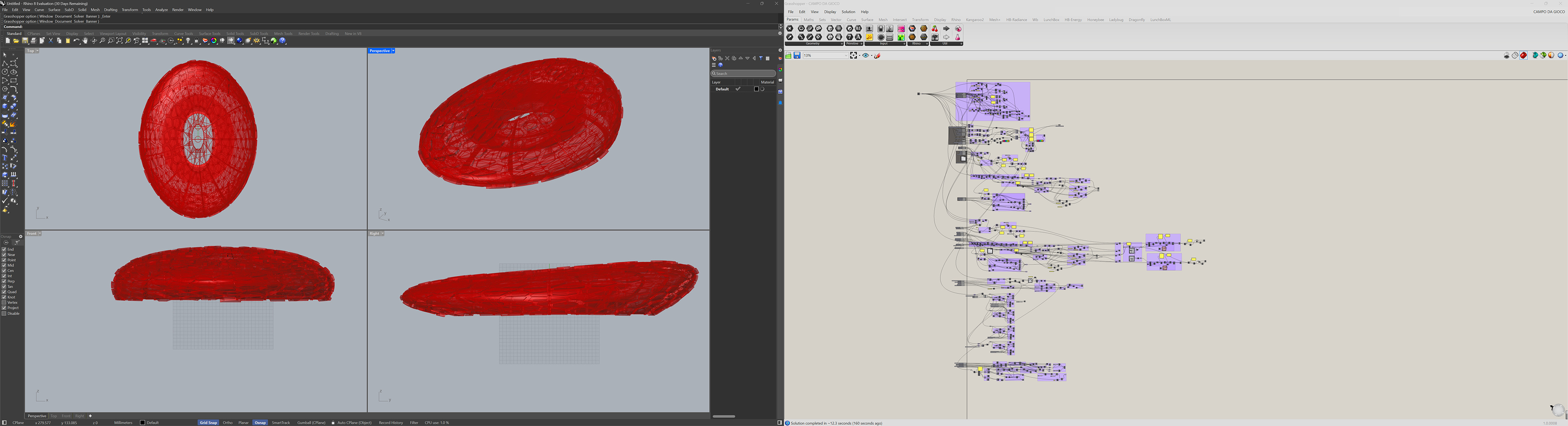

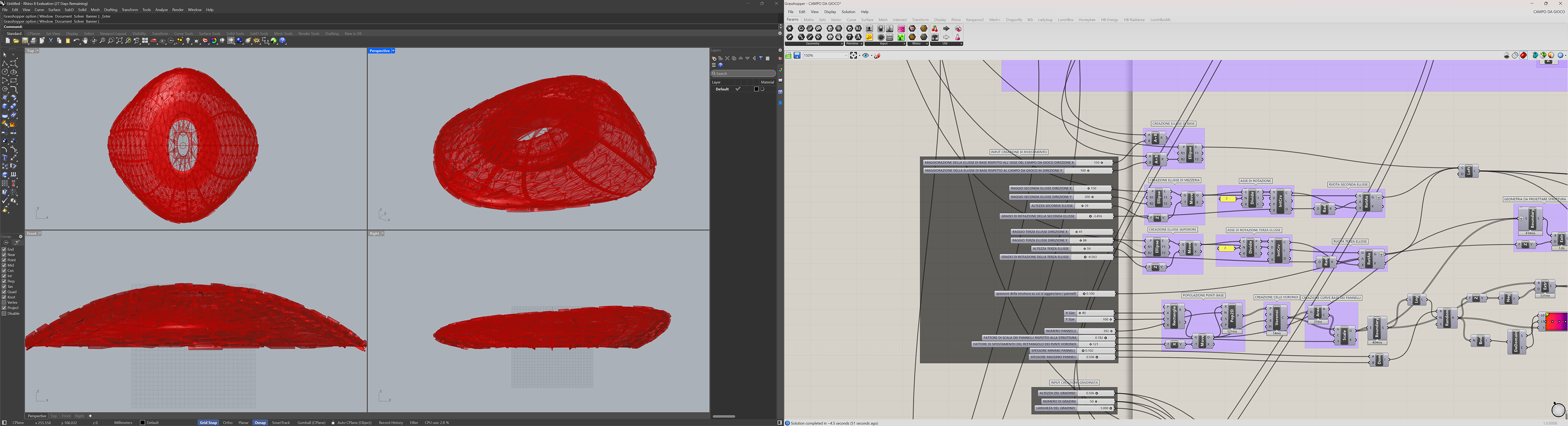

The Computational Workflow

The real power emerges when Rhino and Grasshopper work together.

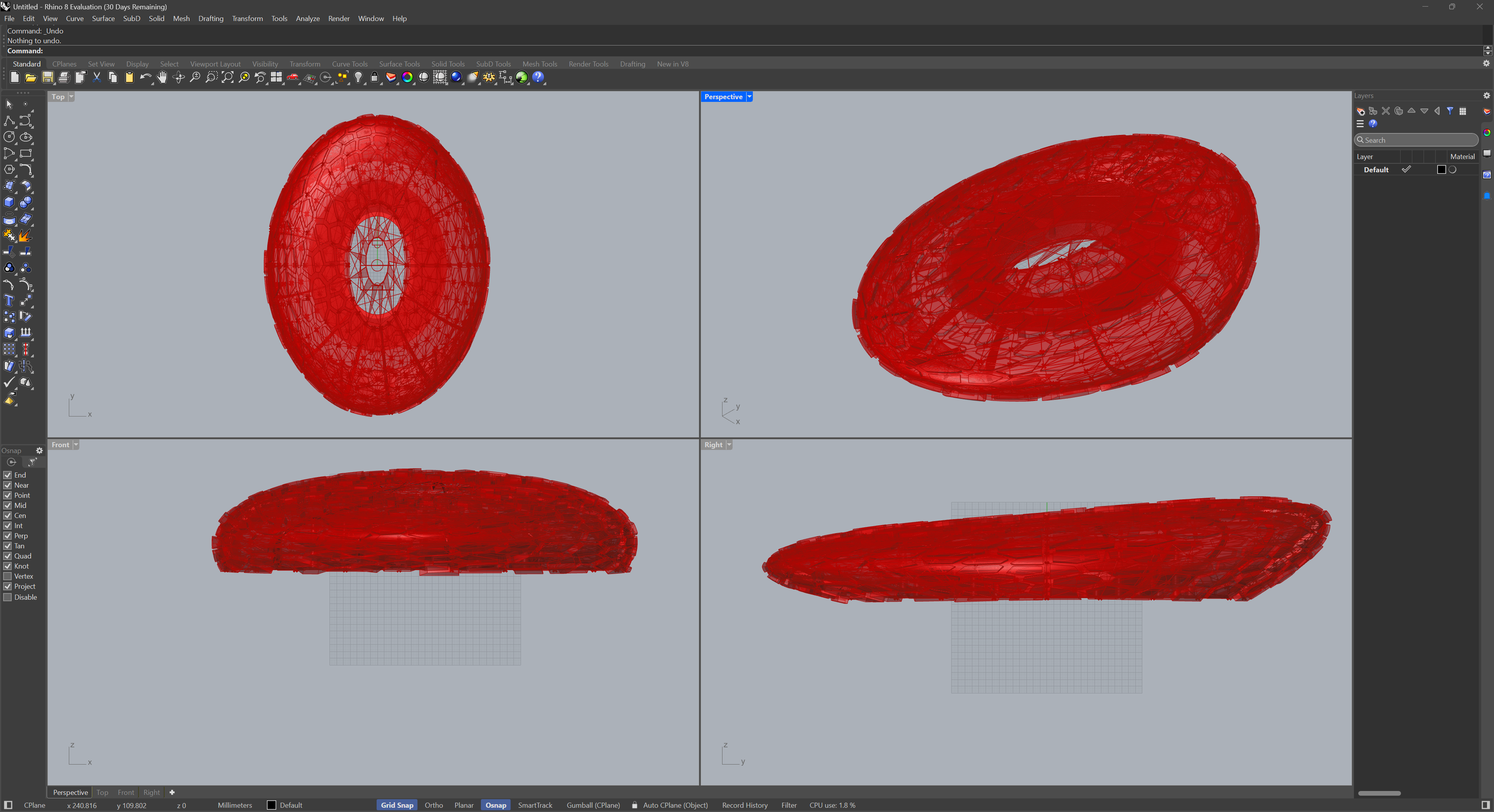

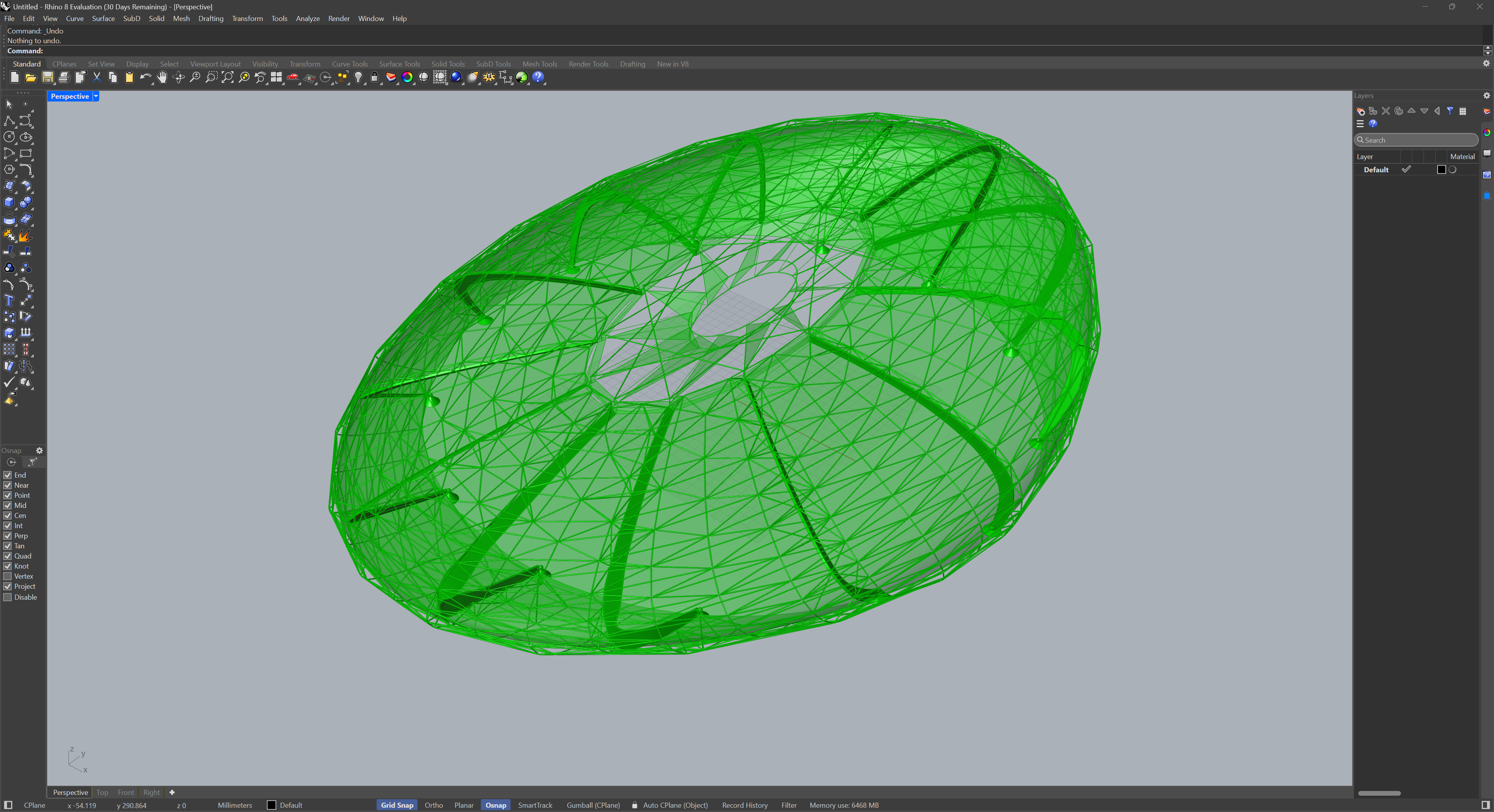

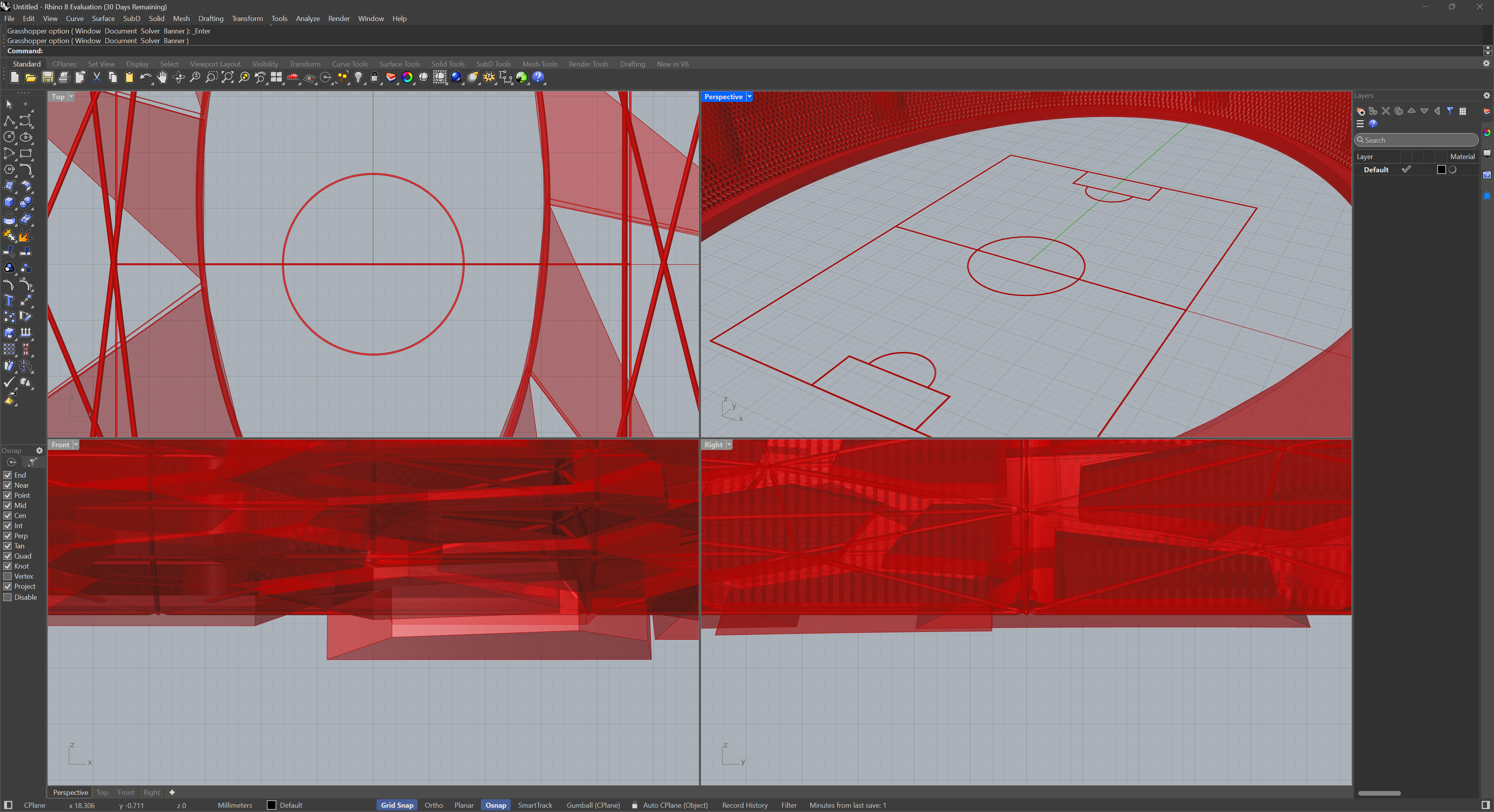

RHINO: The Geometric Modeling Engine
Rhino is a 3D modeling software optimized for NURBS (curves and
surfaces). It handles the visualization and export of complex
geometries.

GRASSHOPPER: The Visual Programming Environment
Grasshopper is a "generative design" plugin for Rhino. It allows
algorithms to drive geometry, parametric geometry that responds to
input parameters.

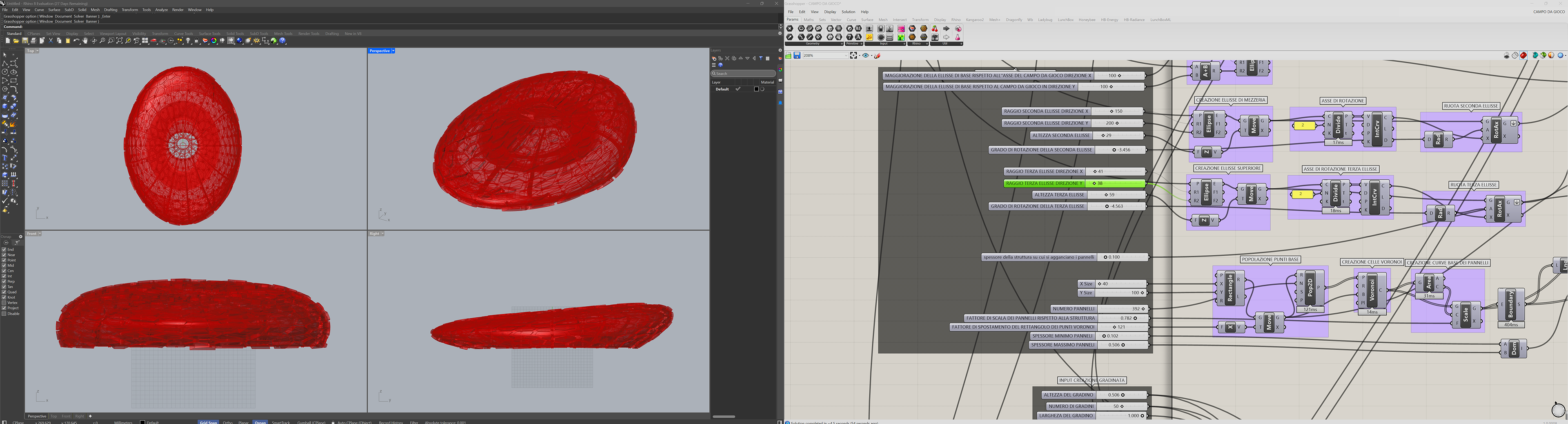

THE WORKFLOW:
DEFINE PARAMETERS in Grasshopper (capacity, diameter, angles)
BUILD ALGORITHM in Grasshopper (mathematical relationships)
GENERATE GEOMETRY in Grasshopper (output to Rhino viewport)
VISUALIZE in Rhino (shaded view, materials, rendering)
MODIFY PARAMETERS and algorithm regenerates automatically
ITERATE through design variations instantly

REAL-TIME RESPONSIVENESS:
This is the revolutionary aspect. In traditional design:
- Design → Iterate → Wait for model rebuild → Modify → Repeat

In parametric design:
- Adjust slider → Model regenerates in real time → See result instantly

This enables design exploration that would be impossible in
traditional workflows.

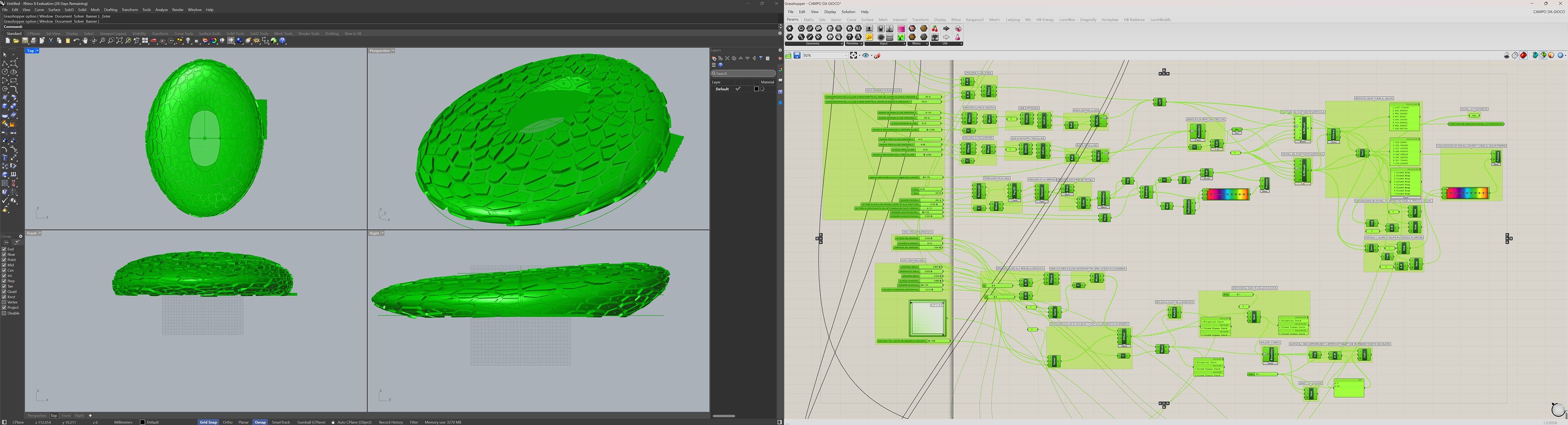

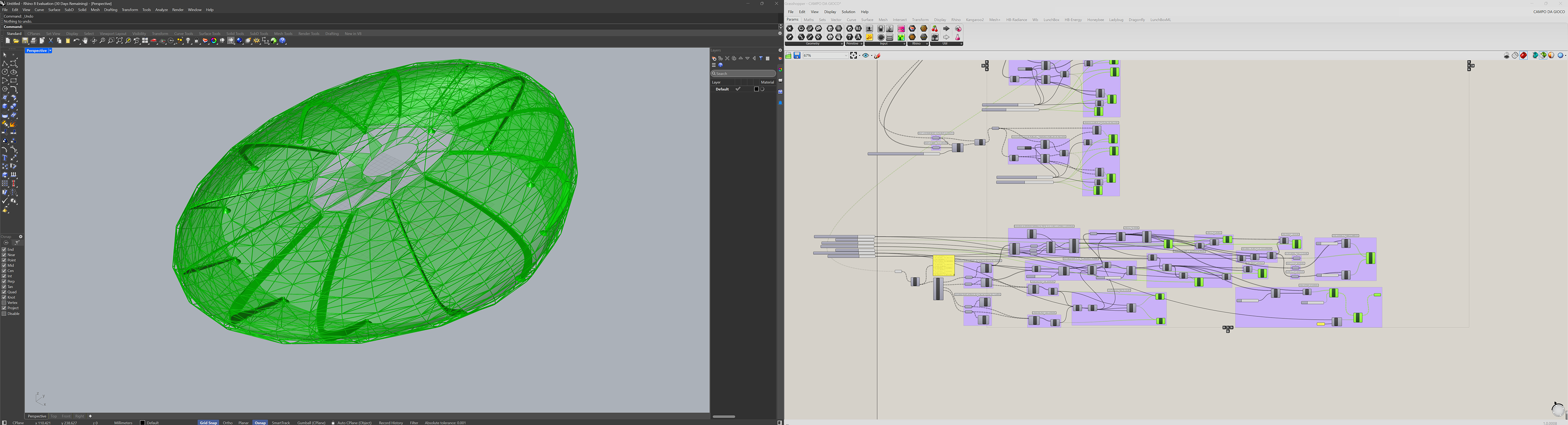

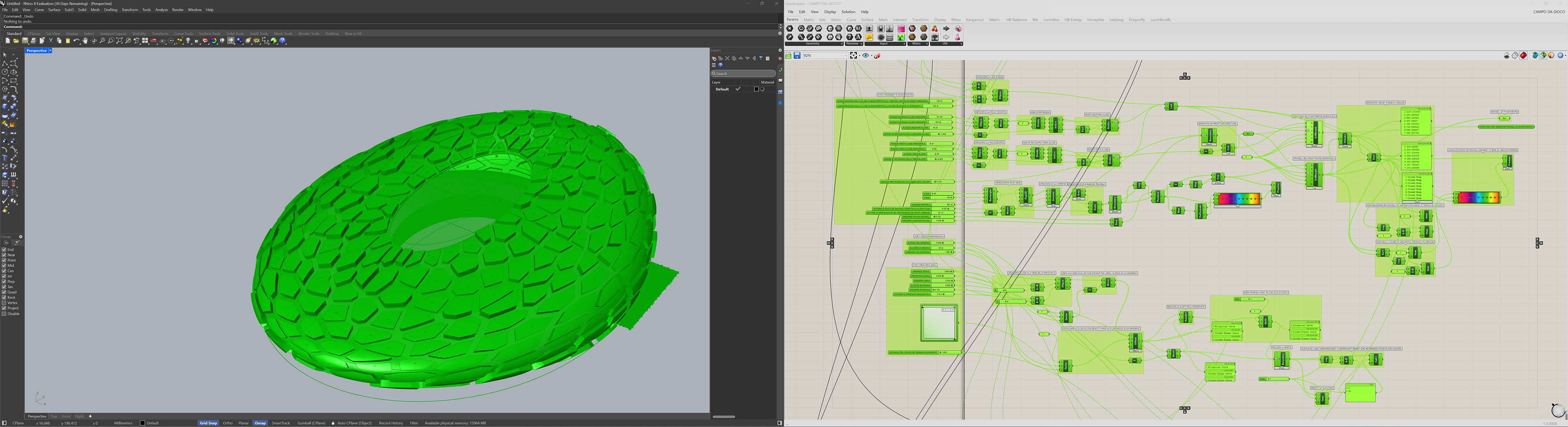

Generative Exploration: Design Variations

The true value of this computational system is demonstrated through
design variation, something nearly impossible in traditional design.

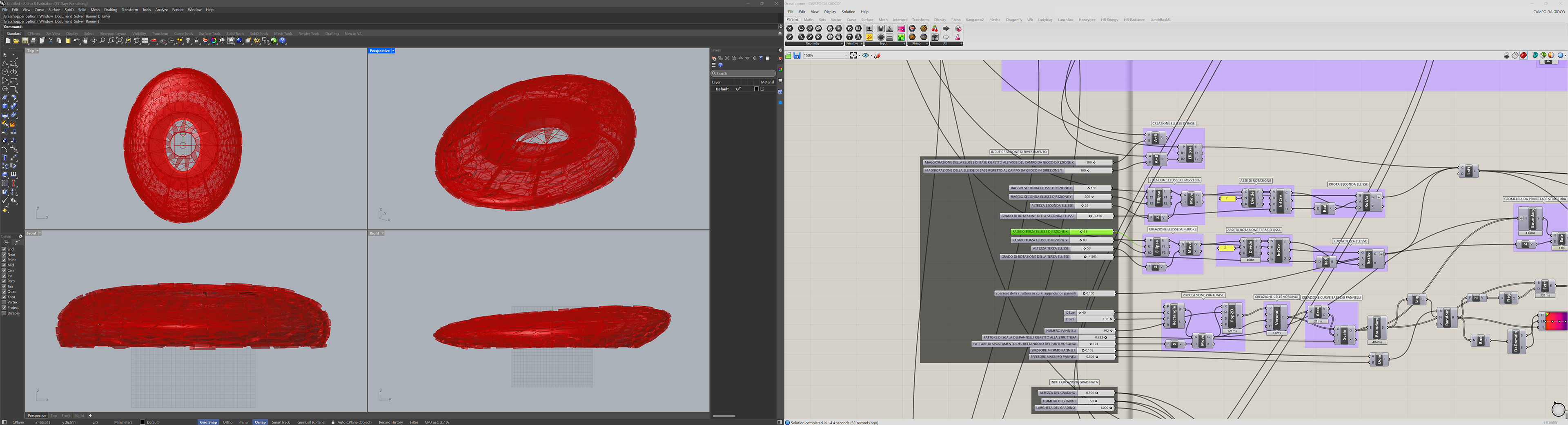

GENERATING VARIATIONS:
By adjusting parameters, the algorithm generates distinct stadium
configurations, each mathematically coherent and satisfying the
embedded constraints:

VARIATION 1: Compact Design
• Capacity: 35,000 seats
• Diameter: 120m
• Tiers: 2 levels
• Use case: Medium-sized regional stadium

VARIATION 2: Large Capacity
• Capacity: 60,000 seats
• Diameter: 170m
• Tiers: 3 levels
• Use case: Major league / international competition

VARIATION 3: Open-Air Design
• Capacity: 40,000 seats
• Diameter: 150m
• Roof Coverage: 30%
• Use case: Temperate climate, natural ventilation

VARIATION 4: Enclosed Design
• Capacity: 50,000 seats
• Diameter: 160m
• Roof Coverage: 100%
• Use case: Climate-controlled, year-round use

THE INTELLIGENCE:
Each variation automatically:
Recalculates sightline angles to ensure visibility
Adjusts tier heights for structural efficiency
Reorients structural grid for new geometry
Repositions emergency exits for optimal egress
Recalculates material volumes and costs
Maintains architectural integrity

This would take a traditional design team weeks to explore.
The algorithm generates all variations in minutes.

WHAT THIS DEMONSTRATES:
SCALABILITY: The system works for any stadium size
RAPID PROBLEM-SOLVING: Complex challenges solved algorithmically
DESIGN INTELLIGENCE: Constraints automatically enforced
PROFESSIONAL CAPABILITY: This is how cutting-edge firms approach
large projects (Olympics, international competitions, etc.)

Mastering Computational Design

This stadium project represents a fundamental shift in my
professional capabilities, from traditional design to computational
architecture.

WHAT THIS PROJECT DEMONSTRATES:

ALGORITHMIC THINKING
I've moved beyond drawing tools to thinking in algorithms,
understanding how to decompose complex problems into
computational procedures. This is essential for BIM specialists
and computational designers.

PARAMETRIC SYSTEMS DESIGN
I can create intelligent systems where geometry responds to
parameters. Not "designing a stadium," but "designing a system
that generates infinite stadiums." This is exponentially more
powerful.

SCALABILITY AT ARCHITECTURAL SCALE
The system I created isn't tied to one project, it's a template.
Adjust parameters and generate solutions for any stadium size,
anywhere. This is how computational designers solve problems
at global scale.

INTEGRATION WITH PROFESSIONAL PRACTICE
This skill directly transfers to architectural practice:

• BIM COORDINATION: Using Dynamo in Revit to automate
repetitive tasks and ensure coordination across disciplines
• PARAMETRIC FACADES: Designing complex facade systems that
respond to structural grids
• STRUCTURAL OPTIMIZATION: Working with engineers to
algorithmically optimize structural forms
• COMPUTATIONAL GENERATIVE DESIGN: Creating AI informed design
systems (emerging frontier)

FUTURE-PROOF SKILLSET
As architecture becomes increasingly computational, these skills
are in high demand. Firms that integrate computational design
outcompete those relying on traditional methods.

THE PROFESSIONAL PATH:
My three projects collectively demonstrate:

PROJECT 1 (Master's Thesis):
"I can create beautiful, sophisticated interior designs with
complete creative freedom"

PROJECT 2 (Villa Verde Case Study):
"I can study and respect existing masterworks while contributing
thoughtfully within constraints"

PROJECT 3 (Parametric Stadium):
"I can build scalable, algorithmic systems that solve complex
problems at architectural scale"

These three capabilities, creative excellence, collaborative
discipline, and computational thinking, are exactly what forward
thinking architectural practices need.

THE FUTURE OF ARCHITECTURAL PRACTICE:
Design is moving from drawing to algorithmic generation.
Architects who understand parametric systems, computational
optimization, and data driven design will define the next
generation of architecture.

This stadium project positions me at that frontier.

NEXT SKILL FRONTIERS:
With computational design fundamentals solid, I'm ready to explore:
• Advanced Dynamo scripting in Revit (parametric BIM at scale)
• Python-based generative design (automation + optimization)
• Multi-objective optimization (balancing cost, performance, aesthetics)
• Machine learning applications in architecture (AI informed design)
• Real-time performance analysis integrated with design generation

This project is not an end, it's a beginning. It opens pathways to
becoming not just a designer, but an architect who can leverage
technology to solve problems no traditional approach could touch.

Return To Portfolio

↑Back to Top
